	Model/Name	Characteristics	Download
	PZP111 SMD-type Absolute Press	Pressure range : 0~1bar, 0~2bar, … , 0~20bar; Pressure types: absolute; Non-linearity: 0.3%FS ( typical ) ; No temperature compensated; Excited by either current or voltage; Operating temperature range: -40°C ~ +125°C; Low cost, high reliability and long-

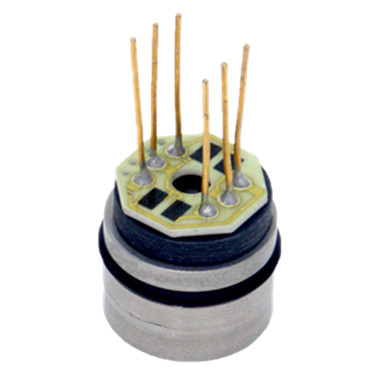

	PZP130 Piezoresistance Silicon	Pressure range : 0~10bar, … , 0~1000bar; Types: gauge, absolute and sealed gauge; Accuracy up to 0.25%fs; Φ12.6 mm; 316L stainless steel material

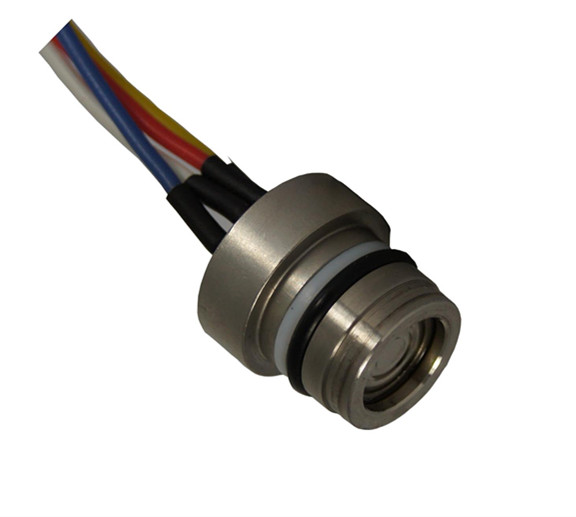

	PZP150 Piezoresistance Silicon	Pressure range : 0~3.5bar, … , 0~600bar; Types: gauge, absolute and sealed gauge; Accuracy up to 0.25%fs;Φ15 mm; 316L stainless steel material

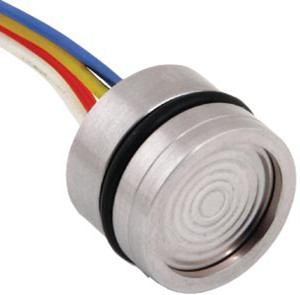

	PZP160 Piezoresistance Silicon	Pressure range : 0~2.5bar, … , 0~250bar; Types: gauge, absolute and sealed gauge; Accuracy up to 0.25%fs; Φ15.8mm; 316L stainless steel material

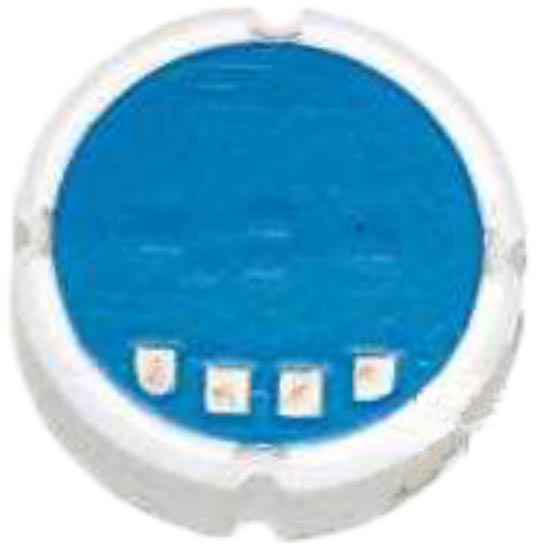

	PZP180 Ceramic Pressure Sensor	Pressure range : 0~5bar, 0~10bar, … , 0~150bar ; Types: Gauge; Excellent resistance to corrosion & abrasion; Φ18mm;
